Custom 160 Tests Fully Automated Blood Clinical Chemistry Analyzer JA-CLE-Ba

1.0 Sets
MOQ

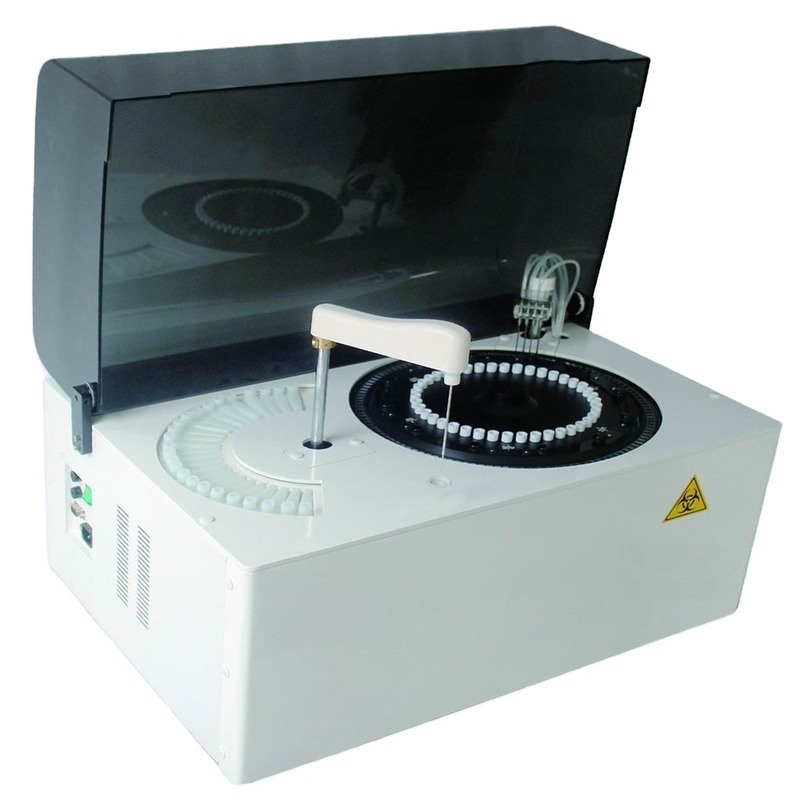

Custom 160 Tests Fully Automated Blood Clinical Chemistry Analyzer JA-CLE-Ba
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Biochemical Analysis System
Model Number: JA-CLE-ba
Instrument Classification: Class II
Warranty: 1 Year
After-sale Service: Online Technical Support
Sample Volume: 2-50ul
Reagent Volume: R1:25-300ul, R2:10-150ul, 0.1ul Increment
Reagent Refrigeration: 4-15℃
Temperature: 37℃±0.1℃ With Real-time Display
Power Supply: AC 220V±22V, 50Hz±1Hz, Power 1.5KVA
Dimension: 750mm*520mm*600mm
Weight: 45KG
Basic Infomation
Model Number: JA-CLE-ba
Payment & Shipping Terms
Supply Ability: 1000 Piece/Pieces per Month
Product Description
Products Description
Product Name
Fully Automated Blood Clinical Chemistry Analyzer (160 Tests/Hour)
Power supply
AC 220V±22V, 50Hz±1Hz, power 1.5KVA
Ambient Temperature
15-30 ℃
Humidity
35-80%
Water consumption
5L/Hour
Dimension Bench top
750mm*520mm*600mm
Weight
45KG
Overall Performance
Equipment type Fully automatic discrete, STAT priority
Analysis rate Constant speed 160T/H (without ISE)
Test principle Colorimetry, turbidimetry
Analysis method End-point, 2 kinetics, fixed-time, etc. support single/double wavelength, linear and non-linear calibration

Sample System
Sample Tray 42 sample positions, random access of all samples
Sample Volume 2-50ul, 0.1ul increment
Sample probe Liquid level detection, the remaining detection, collision protection etc.
Sample Containers Sample cups, Micro tube, Original blood-collection tube, etc.

Reagent System
Reagent Tray 25 reagent positions
Reagent Volume R1:25-300ul, R2:10-150ul, 0.1ul increment
Reagent Probe Liquid level detection, the remaining detection, collision protection etc.
Reagent Refrigeration 4-15℃, independent power supply, 24-hour non-stop refrigeration

Reaction System
Reaction Tray Rotating tray, 120 cuvettes
Cuvette Reusable high quality cuvette, Optical diameter 6mm
Reaction Volume 180-500ul
Incubation system Bi-directional liquid-air device
Temperature 37℃±0.1℃ with real-time display

Optical System
Light source 12V35W halogen lamps, over 2000 hours
Photoelectron road after spectrophotometry
Wavelength 340,405,450,510,546,578,630,700nm
Absorbance range 0-3.500Abs
Resolution 0.0001Abs

Operating System
PC operating system Windows XP or above
Analysis control software English version graphical operating software
Report printing Report formats support the user-defined mode, QC and state information etc.
System connection RS-232
Product Catalog
CLICK TO SEE ALL THE PRODUCTS >>
Company Profile
Certifications
Exhibition
Shipping and Packing
FAQ
Q1. What is your warranty for the products? A: One year for free. Q2. What is your after-sales service? A: We provide technical support through operating manual and video link. Once you have questions, you can get our engineer's prompt response through email, phone call or training in factory. In case of hardware problem within the warranty period, we will send you spare parts for free; or you send it back then we repair for you freely. Q3. What is the delivery / shipping time? A: We have shipping agent, we can deliver the products to you by courier express, air freight, sea cargo. Below is some delivery time for your reference: Express:UPS, DHL, TNT, etc. (Door to Door) United States (3 days), Ghana (7 days), Uganda (7-10 days), Kenya (7-10 days), Nigeria (3-9 days) Hand carry Send to your hotel, your friends, your forwarder, your sea port or your warehouse in China. Air Freight (From airport to airport) Los Angeles (2-7days), Accra (7-10 days), Kampala (3-5 days), Lagos (3-5 days), Asuncion (3-10 days) Sea Freight (Any sea port) Maputo (28 days), Walvis Bay (24 days), Dakar (30 days), Mombasa (30 days), Port Kelang (12 days), Manila(10 days), Lagos(45 days), Guayaquil(45days), Chittagong (20 days), Chennai (20 days), Kolkata (16 days) Q4. How to place the order? WHAT IS YOUR LEAD TIME OF THE PRODUCTS? 30% of our products are in stock, 50% of the products need 3-10 days to produce, 20% of the products need 15-30 days to manufacture. Q5.WHAT IS YOUR PAYMENT TERM? Our payment term is Telegraphic Transfer (T/T) in advance, Western union, Money Gram, PayPal, Trade Assurance, etc. For big projects, we can receive Letter of Credit (L/C) at Sight.
