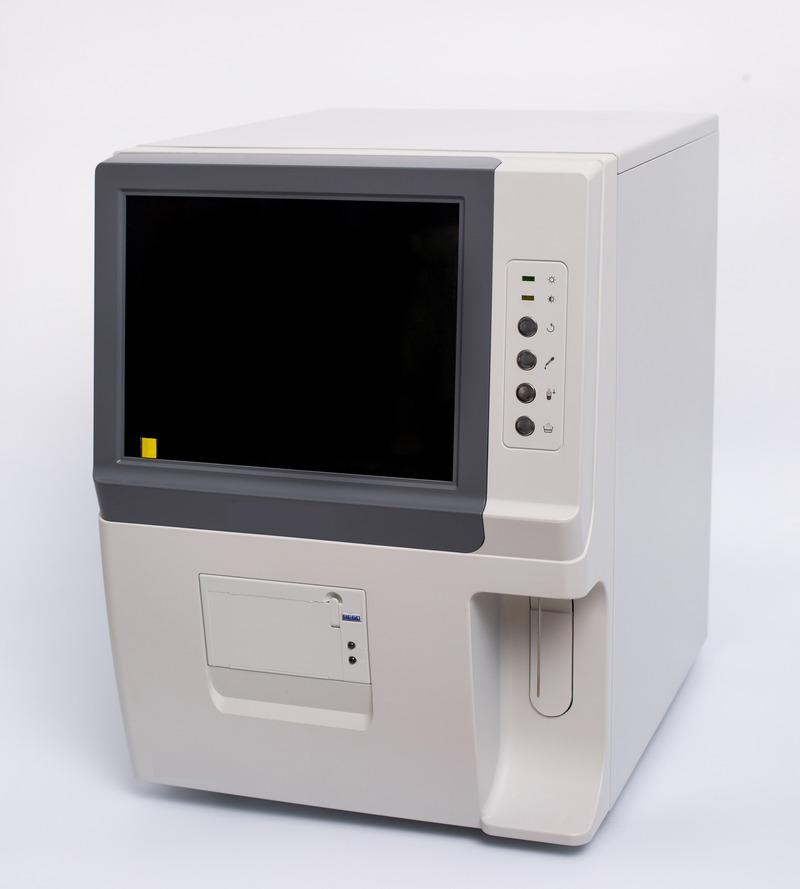

YSTE310 60t/h Auto Hematology Analyzer |
|
3-part blood cell counter |
|
20 parameters + 3 histograms |
|
2 counting channels |
|
Up to 60 samples/hour |
|
10.4″ large color LCD |
|
Built-in printer, USB port |
|
Stable, durable and economical |
Performance
High Stability & Accuracy
l Use the most advanced binuclear embedded digital circuit system, to make the analytical ability great and stable
l 2 counting channels of WBC and RBC, to make the test results more accurate and less cross- contamination
l Use CPLD technology in data processing, to avoid the interference of electromagnetic signals
Reliable Operation System
l ARM intelligent micro-processing technology
l Data analysis: intelligent pulse formulation technology
l Classification: floating landmark technology
l Module design, fast maintenance
User-friendly System
l 10.4’’large color LCD displays main menu and all parameters & color histograms in one screen
l Brief operation instruction built-in software, easy for user to view
l Separate module design, very simple mechanical structure, easy maintenance
l Self check for hardware, alarm for error
l Reagent depletion alarm for Lyse, Cleanser and Diluent, as optional function
Technical Features
l 2 counting mode: whole blood, pre-dilution blood
l Sample pre-dilution: internal diluter, add 1ml diluent automatically by the needle, no need to add diluent manually to avoid deviation.
l Calibration: automated or manual
l QC: comprehensive QC program, forming and printing the histogram automatically
l Block removal: Real time monitor, high ignition, soak, flush and back flush
Technical Specifications
Principle: Electrical impedance for counting and SFT method for hemoglobin
Parameters: WBC, LYM#, MID#, GRA#, LYM%, MID%, GRA%,RBC, HGB,
HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW,
PCT, P-LCR, and 3 Histograms for WBC, RBC and PLT
Throughput: Up to 60 samples per hour
Sample Volume: Whole blood: 9μl, Pre-dilution blood: 20μl
Aperture Diameter: WBC: 80μm RBC: 50μm
Alarms: Error messages
Display: 10.4’’ large color LCD
Storage: 10,000 sample results including histograms,
available to increase storage by expanding memory card
Printout: Built-in thermal printer, various print-out formats; external printer optional
Input: Mouse and keyboard, connected by USB port
Interface: USB x3, RS232 x2
Working Conditions:
Temperature: 15-35℃, Humidity: ≤80%
Atmospheric pressure: 70Kpa-106Kpa
Power supply: AC220V±22V, 50±1Hz
Dimension: 325x370x545mm(L*W*H)
Weight: 16Kg(net), 25Kg(gross)
