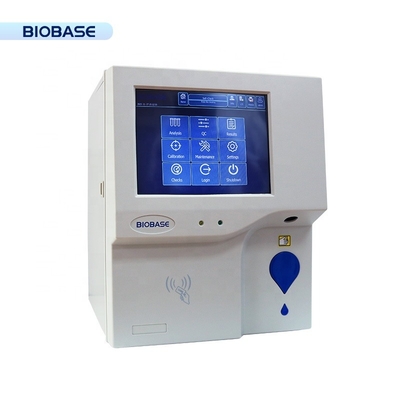

Model | BK-5000 | ||||
Throughput | 60 tests/hour | ||||
Measuring Principle | Coulter principle Colorimetry hemoglobin determination | ||||
Parameters | WBC, LY#, MID#, GR#, LY%, MID%, GR%, RBC, HGB, HCT,MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PDW, PCT, P-LCR, P-LCC | ||||
Histograms | 3 Histograms (including WBC, RBC, PLT) | ||||
Sampler Volume | Predilute 20μl Whole blood 10μl | ||||
Display | 8” color touch screen display | ||||
Intelligent reagent management function | Reagent information and residual display | ||||
Carryover | WBC≤1.5% RBC, HGB<1.0% , PLT≤2% | ||||
Printer | External printer | ||||
Input and output | 1 RS232 , keyboard , Mouse, 4USB, LAN | ||||
Performance | Parameter | Linearity range | Precision (CV%) | ||
WBC(109/L) | 0.0-100.0 | 2.0 (4.0-10.0) | |||
RBC(1012/L) | 0.00-9.99 | 1.5 (3.50-5.50) | |||
HGB(g/L) | 0-300 | 1.0 (110-160) | |||
PLT(109/L) | 0-1000 | 5.0 (100-300) | |||
Option | Barcode scanner, LIS | ||||
Operating Environment | Temperature 10-35 oC Humidity≤90% | ||||
Power Supply | AC110/220V±10%, 60/50 Hz | ||||
Package Size(mm) | 630*600*700 | ||||
Gross Weight(kg) | 25 | ||||
Reagent Package Size(mm) | 390*280*260 | ||||
Reagent Gross Weight(kg) | 13 | ||||
