Patient type | Adult, Pediatric & Neonate |
Ventilation modes | VCV, PCV, PRVC, SIMV, PSV, BACKUP, Manual |
Setting | Touch screen & navigator wheel knob |
Tidal volume | 20~1500ml |
Ventilation frequency | 1~100bpm |
I：E ratio | 4：1~1：10 |
Pressure range | 5~70cmH2O |
Ppeep | OFF,3~30cmH2O |
Inspiration plateau | off, 5%~60% Ti |
Trigger sensitivity | 0.5~20L/min; 0~-20cmH2O |
High pressure | 20~80cmH2O |
Low pressure | 0~20cmH2O |
Display | 12.1″TFT touch screen | X40 | |
Pressure | Paw, Ppeak, Pplat, Pmean, PEEP | ||
Volume | MV, Vt | ||
Breath rate | |||
Gas FiO2 | |||
SpO2 | Pulse, SpO2 | ||
Graph display | P-T, F-T, V-T waveforms & P-V, F-V, P-F loops, SPO2-T(Option), EtCO2(Option), AA(Option), Waveform frozen |

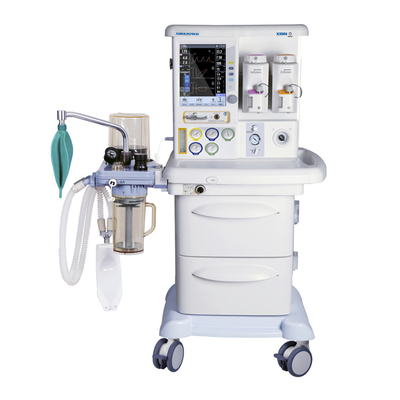

Parameter | X55 description |
Inspiratory tidal volume | Range: 0 ~ 2500 mL; Resolution: 1 mL. |
Expiratory tidal volume | Range: 0 ~ 2500 mL; Resolution: 1 mL. |
Tidal volume | Range: 50 ~ 1500 mL; 20~1500ml(optional) The incremental：20～100 mL：5 mL；100～1500 mL：10 mL； |
Respiratory rate | Range:1~100bpm, Incremental: 1bpm |
Minute ventilation | Range: 0 ~ 60 L / min; Resolution: 0.1 L / min. |
Self-minute ventilation | Range: 0 ~ 60 L / min; Resolution: 0.1 L / min. |
Respiratory rate | Range: 0 ~ 100 bpm; Resolution: 1 bpm. |
Spontaneous breathing frequency | Range: 0 ~ 100 bpm; Resolution: 1 bpm. |
Respiratory ratio | Range: 9:1 to 1:99; resolution: 0.1. |
Peak airway pressure | Range: 0 ~ 100 cmH2O; Resolution: 1 cmH2O. |
Mean airway pressure | Range: 0 ~ 100 cmH2O; Resolution: 1 cmH2O. |
PEEP | Range: 0 ~ 100 cmH2O; Resolution: 1 cmH2O. |
Inspiratory plateau pressure | Range: 0 ~ 100 cmH2O; Resolution: 1 cmH2O. |
The minimum airway pressure | Range: -20 ~ 100 cmH2O; Resolution: 1 cmH2O. |
Fraction of inspired oxygen (optional) | Range: 15 to 100%; resolution: 1%. |
