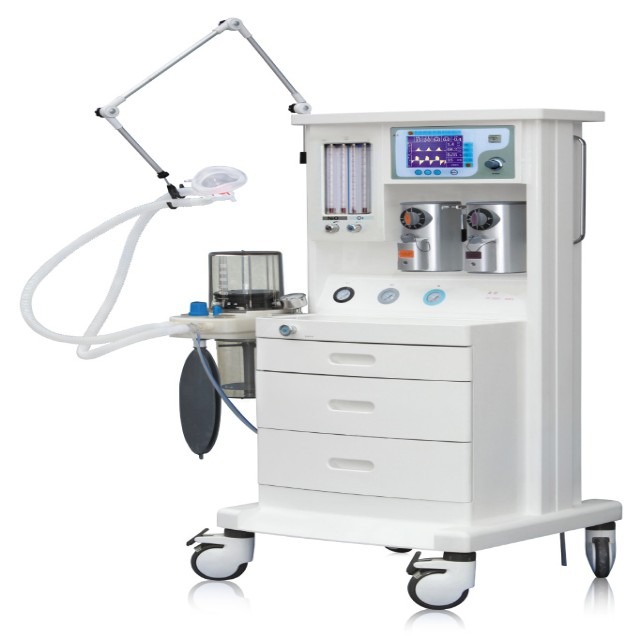

Adult anesthesia machine with 2 vaporizers AJ-2103

Anesthesia Machine with Ventilator AJ-2103

(2 Vaporizers, 2 Gas)

AJ-2103 Anesthesia Machine, with its ergonomic design, integrates a concise and smooth structure and high mobility. The microcomputer-controlled Ventilator adopts exported sensors and other components. Its scientific and proper design as well as rigorous production process is what demonstrates the inner quality of Anjue products: mechanical ventilation is made secure and visible by the folded respiratory bellows, and the security of air supply is guaranteed by pneumatic transmission and measurement system. With multiple modern technologies applied, the Anesthesia Machine is both outstanding in performance and versatile in functions.

n The Ventilator adopts microcomputer control with high-definition 5.7” LCD display, integrating the functions of respiratory control and displaying the monitoring parameters. It is versatile in function and excellent in performance.

The high-precision Vaporizer is designed with a stable concentration output, automatic compensation for pressure, temperature and flow rate. And it is available to choose two kinds of gas from Halothane, Enflurane, Isoflurane, and Sevoflurane, ensuring a successful anesthesia operation.

High-definition four-tube flowmeter, designed with stoppers for oxygen and nitrous oxide to control the output oxygen concentration.

Reliable pneumatic transmission system.

Economic and proper configuration of technologies, optional as required by the Customer.

Modularized design and upgrading. Upgrading is available as required by the Customer.

TECHNICAL PARAMETERS

Part of Anesthesia Machine

• Main body High-strength engineering plastic rack, light,beautiful and corrosion resistant
• Scope of application adult, child
• Gas source O2: 0.27~0.55MPa N2O: 0.27~0.55MPa
• Flow meter O2: 0.1~1.0L/min 1.1~10L/min

N2O: 0.1~1.0L/min 1.1~10L/min

• O2, N2O linkage and N2O Stopper

When using nitrous oxide, oxygen concentration>25%;

When the oxygen pressure<0.2Kpa, the flow of nitrous oxide would be cut off.

• Flow rate of rapid oxygen supply 25~75L/min
• Low oxygen pressure alarm There will be sound alarm when the oxygen
• pressure < 0.2MPa
• Vaporizer it has the function of automatic compensation based on pressure, temperature, and flow rate. The regulation range of evaporator concentration is 0~5 vol%.

Among Halothane,Enflurane,Isoflurane and Sevoflurane,two can be chosen for application as required by the customer. And vaporizers that are imported with original packaging are also available.

• Respiratory circuit working mode: all-close, semi-close, semi-open

APL: 0.5~7 kPa

• Respiratory Bellows bellows for adults, bellows for children

tidal volume range:0~1,500 ml

Part of Ventilator

• Display mode High-definition 5.7” LCD screen display
• Ventilation mode IPPV, SIPPV, SIMV, PEEP, MANUAL, SIGH
• Ventilation parameters Tidal volume 50~1500 ml

Rate 2~99 bpm

SIMV rate 2~20 bpm

I:E 2:1~1:8

Inspiratory trigger pressure -1.0~2.0 kPa

PEEP 0~2.0 kPa

Pressure range 1.0~6.0 kPa

SIGH 1.5 times the inspiratory time

• Parameters for ventilation monitoring tidal volume, ventilation volume, IPPV rate, SIMV rate, total respiratory rate, I/E, peak pressure of airway, pressure - time waveform, flow rate - time waveform, PEEP, inspiratory trigger pressure
• Monitoring of oxygen concentration (21%~100%)
• Security Alarm System

Oxygen Concentration alarm upper limit setting range (50%~100%)

low limit setting range (15%~50%)

Airway pressure alarm upper limit setting range 1.0~6.0 kPa

low limit setting range 0.4~2.0 kPa

Per-minute ventilation volume alarm upper limit setting range 3.0~30L/min

low limit setting range 1.0~10L/min

Sustained high-pressure alarm it will give alarm when stress have consistently been higher than 2.5 kPa

Suffocation alarm it will give sound and light alarm if there is no tidal volume input for 15 seconds

Power alarm

• Power AC 220V±10% 50Hz±1Hz (UPS, Storage battery)
• (Mechanical Arms)
• (End-expiratory CO2 monitoring)

*Items within brackets are optional.
